the SUPREME MOWER
MANUFACTURED TO WITHSTAND SOUTH AFRICA'S RUGGED CONDITIONS
SPINDLE PULLEY, SHAFT AND HOUSING
Heavy Duty spindle pulley secured to a 25mm spindle shaft running on ball bearings fitted within steel spindle housing. Belt guide fitted around spindle pulley for safety and guiding “V” Belt
CHASSIS
5mm thick Chassis throughout incorporates all parts and are easily accessible for lubrication and maintenance.
CUTTER HOUSING
3mm Thick 750mm wide Cutter Housing houses three to six free swinging blades that are mounted onto a blade carrier. Chain guards are fitted to the front and side discharge as standard
AUTO DIFFERENTIAL
Heavy Duty Auto Differential houses four case hardened bevel gears which are mounted to a 1″ (25.4mm) diameter shaft.
gearbox
2 speed oil bath type gearbox made from 100% aluminium house two gears with shafts that are hardened for heavy duty operations
TowBar
Towbar fitted standard to the Unicorn 750 for Optional Ride on seat
Wide FRONT WHEELS
85mm Wide Front Wheels are manufactured from steel bushes accommodating two ball bearings
REAR WHEELS
75mm wide rear wheels are moulded with tread for better grip and stability which are fitted with durable split rims
engines
We are a OEM supplier of All the Leading Engine Brands in South Africa
OPTIONAL EXTRAS
REAR WHEELS
150mm wide rear wheels are moulded with tread for better grip and stability which are fitted with durable split rims.
Ride on seat
Ride-On Seat fitted onto the rear of the Unicorn 750 towbar. Widely utilized for larger areas i.e. sports fields, parks etc.
bar blade
6mm Thick hardened and tempered spring steel blade. Used for slashing extra long grass.
THE BEST VALUE FOR MONEY three wheel
INDUSTRIAL MOWER IN SOUTH AFRICA !!!

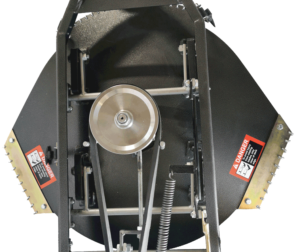

spindle pulley, shaft and housing
Heavy Duty spindle pulley secured to a 25mm spindle shaft running on ball bearings fitted within steel spindle housing. Belt guide fitted around spindle pulley for safety and guiding “V” Belt

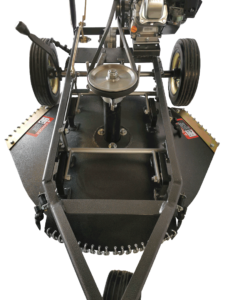

chassis
5mm thick chassis throughout incorporates all parts and are easily accessible for lubrication and maintenance

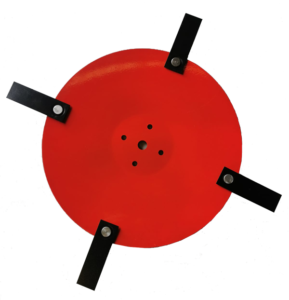

cutting blade disc
3mm Thick 700mm wide Cutter Housing houses four free swinging blades that are mounted onto a blade carrier. Chain guards are fitted to the front discharge as standard

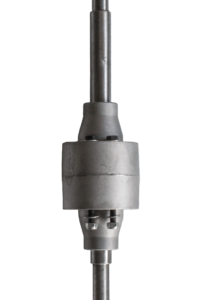

auto differential
Heavy Duty Auto Differential houses four case hardened bevel gears which are mounted to a 1″ (25.4mm) diameter shaft.
gearbox
1 speed oil bath type gearbox made from 100% aluminium house two gears with shafts that are hardened for heavy duty operations

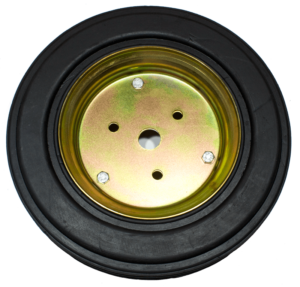

REAR WHEELS
75mm wide rear wheels are moulded with tread for better grip and stability which are fitted with durable split rims.
wide front wheels
220mm x 85mm wide front wheels reinforced with steel plate (NEW)
OPTIONAL EXTRAS

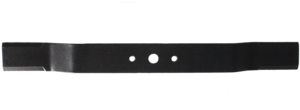

bar blade
6mm Thick hardened and tempered spring steel blade. Used for slashing extra long grass.
Ride on seat
Ride-On Seat fitted onto the rear of the Unicorn 700 towbar. Widely utilized for larger areas i.e. sports fields, parks etc.
the budget meets quality three wheeler
spindle pulley, shaft and housing
Heavy Duty spindle pulley secured to a 25mm spindle shaft running on ball bearings fitted within steel spindle housing. Belt guide fitted around spindle pulley for safety and guiding “V” Belt
chassis
5mm thick chassis throughout incorporates all parts and are easily accessible for lubrication and maintenance
cutter housing
3mm Thick 600mm wide Cutter Housing houses two free swinging blades that are mounted onto a blade carrier. Chain guards are fitted to the front discharge as standard
auto differential
Heavy Duty Auto Differential houses four case hardened bevel gears which are mounted to a 1″ (25.4mm) diameter shaft.

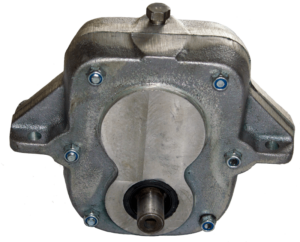

gearbox
1 speed oil bath type gearbox made from 100% aluminium house two gears with shafts that are hardened for heavy duty operations
REAR WHEELS
75mm wide rear wheels are moulded with tread for better grip and stability which are fitted with durable split rims.
wide front wheels
220mm x 85mm wide front wheels reinforced with steel plate (NEW)
OPTIONAL EXTRAS
bar blade
6mm Thick hardened and tempered spring steel blade. Used for slashing extra long grass.
